Premium Residential Car Turntable: Reclaim Your Space
Since 1991, Shenyang Weizhong has redefined private automotive mobility with precision structural engineering. Our premium residential car turntables (also known internationally as driveway turntables) provide an essential architectural solution for luxury villas, tight urban properties, and garages with confined turning access. By enabling flawless 360° on-the-spot rotation, we ensure you always exit onto public streets facing forward—eliminating reversing hazards and optimizing land utilization.
Why You Need It: Solving Your Pain Points
Backing large premium vehicles out of high-blindspot corridors onto heavy public roads creates persistent safety concerns. Our driveway setups erase structural blind zones entirely. Ensuring your vehicle always faces forward maximizes protection for family members and incoming street pedestrians alike.
Allocating precious real estate areas for immense physical vehicle turn-around concrete bays significantly limits space layout. Integrating an elegant Weizhong platform swivels the chassis on a dime, leaving expansive parameters for luxury garden landscaping, building layouts, or exterior architecture.
Modern extended electric cars and high-end sedans require effortless transit management. By eliminating multi-point maneuvering loops in compressed indoor garages, our low-vibration automated platforms align fluidly with premium residential convenience frameworks.
Why Weizhong? Our Technical Edge
- Industry-Leading 150-200mm Ultra-Thin Profile: Our patented mechanical framing achieves a deck thickness cross-section of 150-200mm. This allows low-impact shallow surface mounting across existing driveway configurations, avoiding expensive sub-surface civil pit excavations.
- Patented Pin-Gear Drive System: Leaving behind fragile rubber friction assemblies that suffer tracking slippage under rain or frost, our positive mechanical mesh guarantees continuous smooth rolling torque conversion and whisper-quiet performance.
- 30-Year Corrosion Resistance Blueprint: Every underlying structural carbon steel element is treated with absolute industrial hot-dip galvanization lines, establishing robust resistance against ground salt accumulation, groundwater dampness, and severe zero-degree winter weathering cycles.
Professional Engineering Specifications
| Platform Diameter (m) | Dynamic Payload Limit (kg) | Rotational Speed Range | Structural Frame Profile (mm) | Standard Operational Mode | Advanced Automation Interfaces | Voltage Configurations (V) |
|---|---|---|---|---|---|---|
| 4.0 | 2,500 kg (Compact Class) | 0.2 - 0.5 RPM (VFD Controlled) | 127mm (5 Inches) | Handheld RF Remote Control / Waterproof Wall Push Button | Mobile App Control / Variable Velocity Settings / Smart Home Integration Node | 110V / 220V Dual Adaptive Single Phase |
| 4.5 | 3,000 kg (Standard Luxury Sedans) | |||||
| 5.0 | 3,000 kg (Standard Luxury Sedans) | |||||
| 5.5 | 4,000 kg (Heavy Battery EVs) | |||||
| 6.0 | 5,000 kg (Full-Size SUV Allocation) | |||||
| 7.0 | 5,000 kg (Multi-Vehicle Custom Platform) |

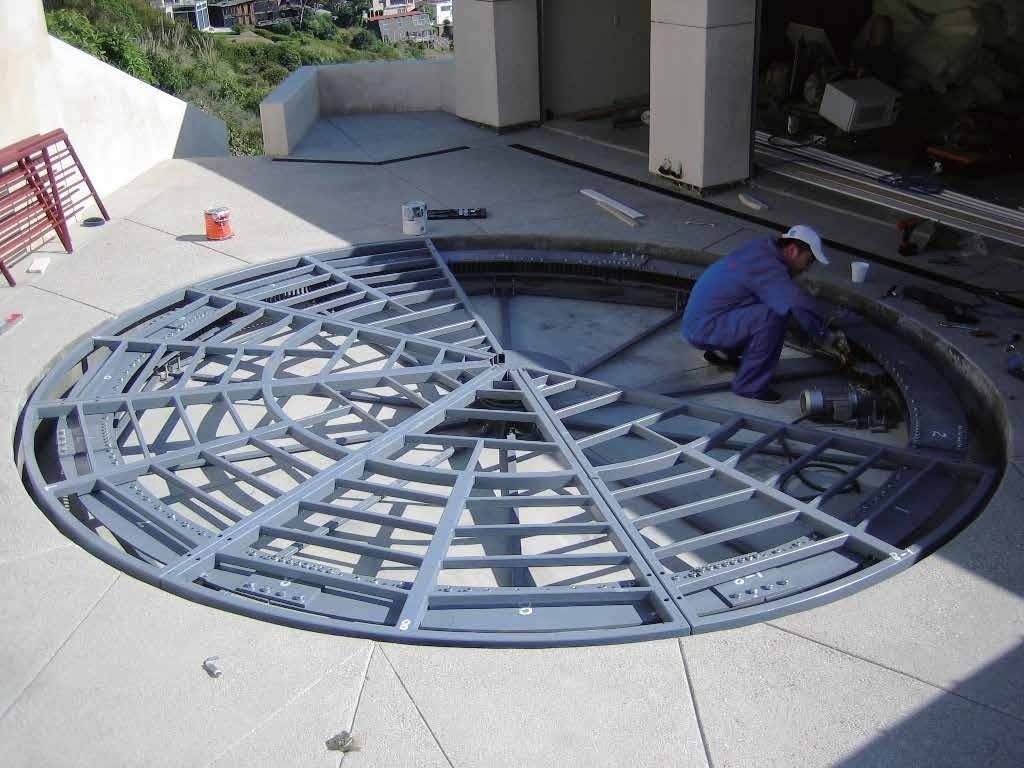

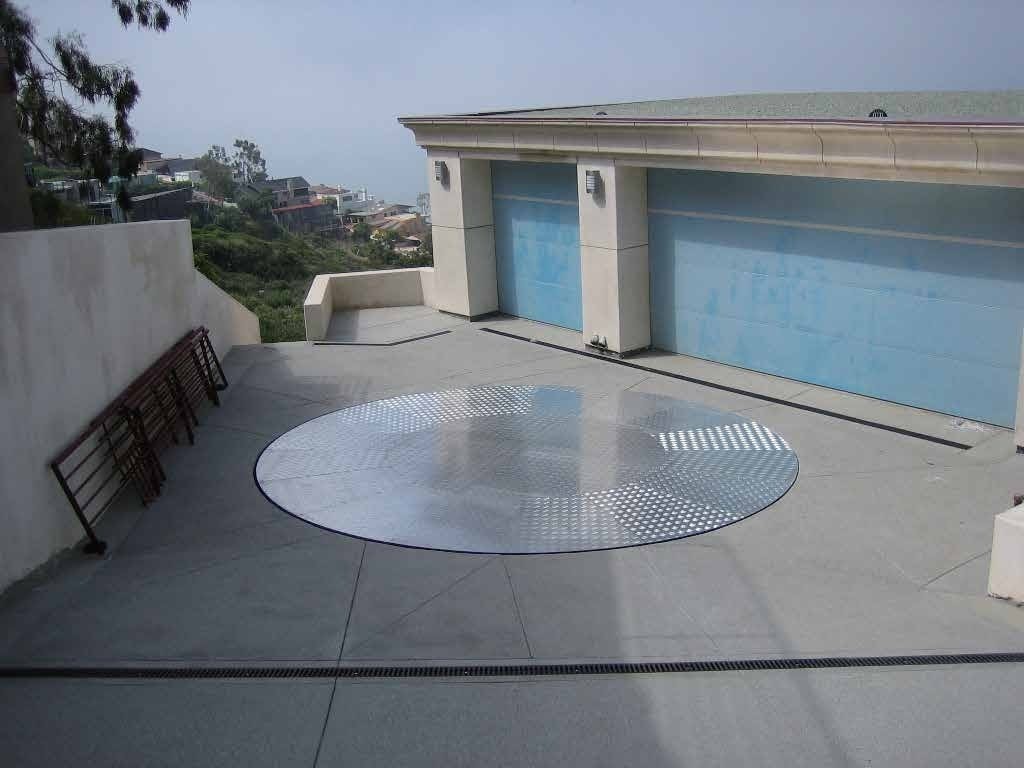

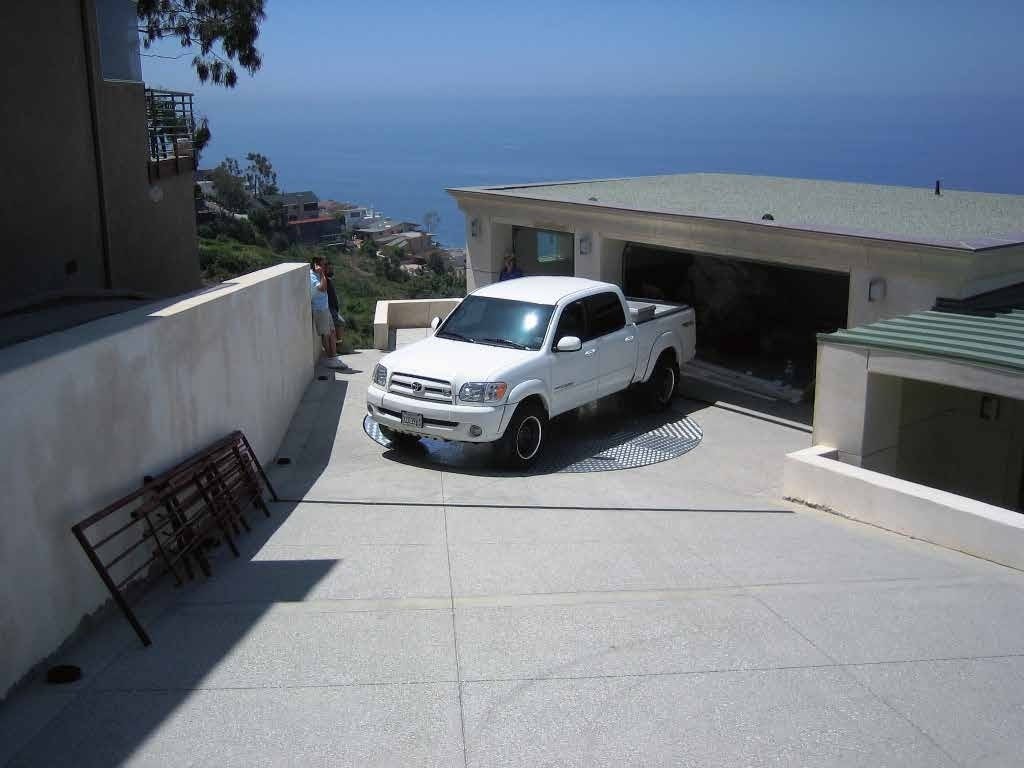

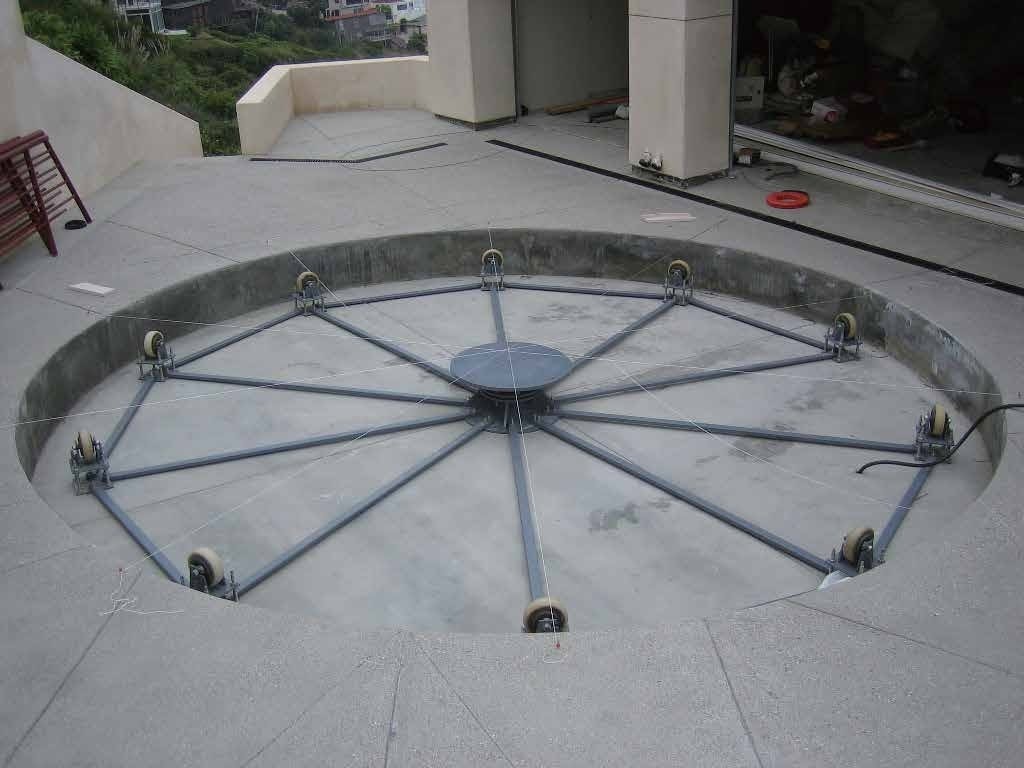

Project Lifecycle Showcase: Newport Beach Structural Installation
Get a Professional Technical Quote
Contact us directly for comprehensive pricing, technical blueprints, and custom configuration details for our systems.
sales@360platform.comOr Contact Your Regional Manager Directly
Technical FAQ
Q: Can the turntable handle heavy SUVs and EVs?
A: Absolutely. Our residential driveway installations feature highly rigid structural frameworks supporting dynamic payloads up to 5,000kg. This layout easily accommodates modern luxury electric vehicles (EVs) with heavy battery packs and full-size premium SUVs without mechanical stress.
Q: Can the surface match my driveway?

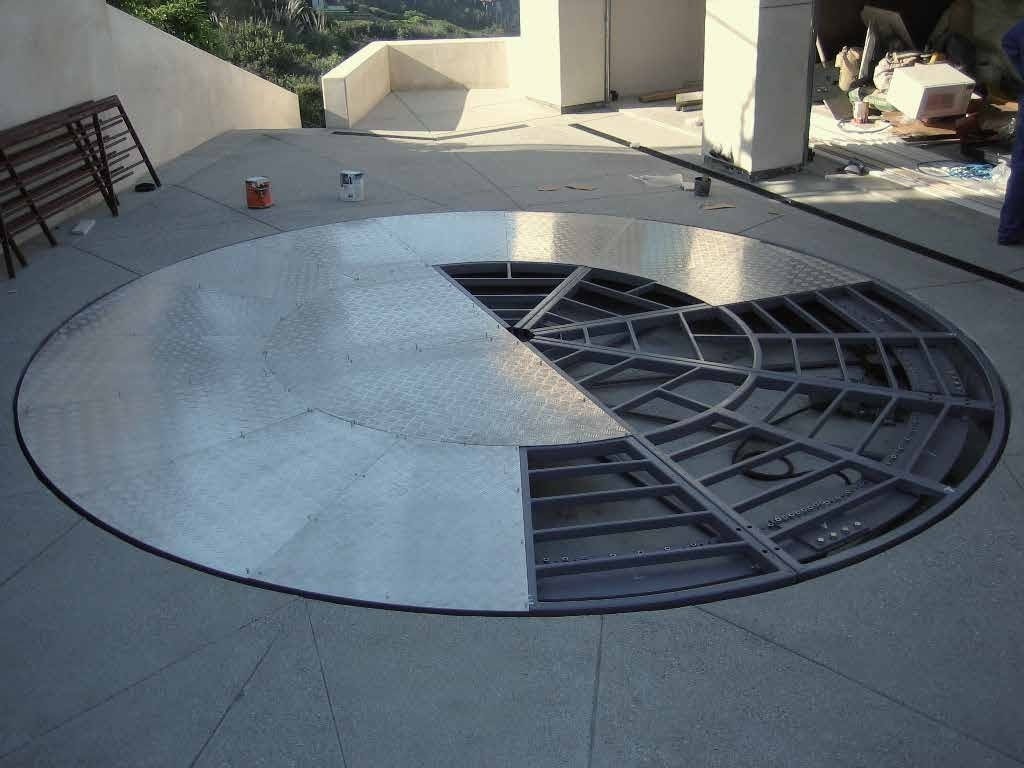

A: Yes. The top structural platform tray features a specialized depth recess engineered to receive localized architectural finishes. You can overlay the rotating deck with paving bricks, porcelain outdoor tiles, matching driveway concrete, or timber planks to integrate seamlessly with your landscaping design.
Q: Does the turntable require a deep pit?
A: No. Weizhong specializes in an industry-leading 150-200mm ultra-thin cross-section. This compact engineering profile completely eliminates the necessity for deep, disruptive sub-floor civil excavations, saving significant construction and pit drainage costs.
Q: Is the rotation noisy?
A: Not at all. Explicitly engineered for private residential environments and private villas, our patented rolling contact Pin-Gear mechanism operates cleanly under sub-garage acoustic limits, delivering an ultra-smooth, whisper-quiet motion that will not disturb your home environment.
Q: What is the maintenance requirement?
A: Maintenance parameters are exceptionally low. Unlike rubberized friction wheels that require constant adjustments and replacement tracking, the positive gear mesh of our mechanism functions reliably over a multi-decade span. It requires only standard lubrication intervals every 12 to 18 months.
Q: Can it integrate with smart home systems?
A: Yes, our automated control topologies are wired with smart interface modules. The platform natively synchronizes with standard wireless frequencies, dedicated smart home networks, and smart apps, allowing you to trigger a 180-degree turn via your vehicle's integrated console link or smartphone.
